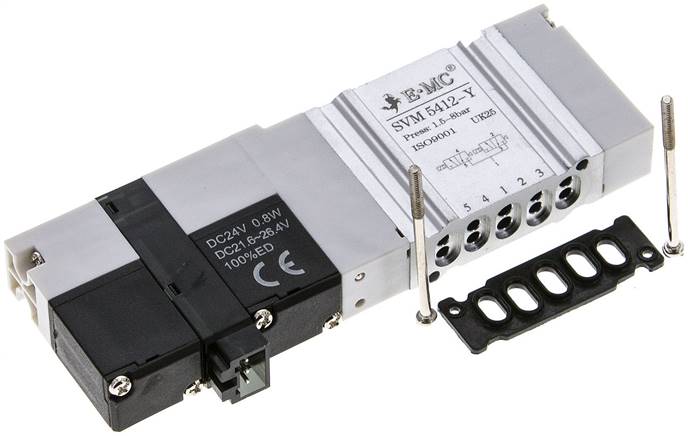

SVM 5412-Y (EMC) Solenoid valve for S1V, 2x 3/2-way (NC/NC)

Genuine EMC SVM 5412-Y – SVM 5412-Y (EMC) Solenoid valve for S1V, 2x 3/2-way (NC/NC). Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SVM 5412-Y
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SVM 5412-Y – SVM 5412-Y (EMC) Solenoid valve for S1V, 2x 3/2-way (NC/NC). Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SVM 5412-Y
• Brand: EMC
• Product: SVM 5412-Y (EMC) Solenoid valve for S1V, 2x 3/2-way (NC/NC)

Trusted by engineers across the UK, this SVM 5412-Y (EMC) Solenoid valve for S1V, 2x 3/2-way (NC/NC) is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body and slider: Aluminum, gaskets: NBR, pilot: Plastic

Operating pressure:
1.5 - 8 bar (5/3-directional: 2 - 8 bar)

Media:
oiled and unoiled filtered compressed air

Switching time:
<15 ms, max. 5 switching cycles / sec. (5/3-directional: max. 3 switching cycles / sec.)

Control voltages:
24 V DC

Voltage tolerance:
± 10 %

Power consumption:
0.8 W / valve solenoid

Protection class:
IP 40

Service life:
min. 40 million switching cycles

Version:
with LED switching status display

Scope of delivery:
Valve including screws and gasket

Note:
These valves can simply be screwed onto a valve position of an existing valve terminal to extend the functional range of a standard terminal or to replace a defective valve.

Version	Connection plate valve
function	2x 3/2-way (NC/NC)
Code	Y
flow [l/min]	330

Weight	80 g / pcs
GTIN	4050571917036
Customs duty number	84812090
RoHS compliant	Yes
Manufacturer	EMC
