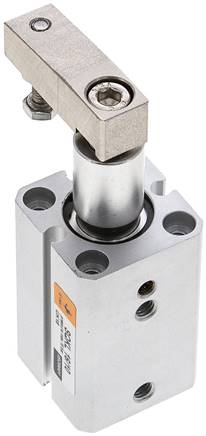

SQKL 16/10 (EMC) Swivel Clamps / Clamping Cylinder Ø 16 Mm, Clamping Stroke 10Mm Left Turning (Turns Counter-Clockwis

Genuine EMC SQKL 16/10 – SQKL 16/10 (EMC) Swivel Clamps / Clamping Cylinder Ø 16 Mm, Clamping Stroke 10Mm Left Turning (Turns Counter-Clockwis. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SQKL 16/10
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SQKL 16/10 – SQKL 16/10 (EMC) Swivel Clamps / Clamping Cylinder Ø 16 Mm, Clamping Stroke 10Mm Left Turning (Turns Counter-Clockwis. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SQKL 16/10
• Brand: EMC
• Product: SQKL 16/10 (EMC) Swivel Clamps / Clamping Cylinder Ø 16 Mm, Clamping Stroke 10Mm Left Turning (Turns Counter-Clockwis

Trusted by engineers across the UK, this SQKL 16/10 (EMC) Swivel Clamps / Clamping Cylinder Ø 16 Mm, Clamping Stroke 10Mm Left Turning (Turns Counter-Clockwis is available for fast nationwide delivery from Roladex Industrial Supplies.

---

EMC Swivel – Clamps / Clamping Cylinder Ø 16 Mm, Clamping Stroke 10Mm Left Turning (Turns Counter-Clockwis

Genuine EMC part Swivel. Ideal for maintenance and replacement on pneumatic systems. If you’re matching an existing unit, the part number is the safest way to confirm compatibility.

• Part number: Swivel
• Product: Clamps / Clamping Cylinder Ø 16 Mm, Clamping Stroke 10Mm Left Turning (Turns Counter-Clockwis
• Brand: EMC
• Support: Need help cross-referencing? Send us your existing code/label and we’ll confirm.

Delivery & trade: Fast UK supply available. Request a quote for best pricing on quantities.

---

Item description

Materials:
Body: Aluminum anodised, piston rod: hard chromium plated steel, seals: NBR / PUR

Temperature range:
-10 to +70 °C

Operating pressure:
max. 10 bar

Swivel angle:
90° (± 10°)

Version:
With Magnetic piston

Note:
•only operate cylinders positioned vertically or suspended
•clamps only allowed inside the clamping stroke and on level surfaces,
•workpiece must be idle during clamping process

Advantages:
•simple mechanics, robust construction
•supplied with removable lever arm, which can be adjusted in 90° increments
•Main dimensions identical to SMC Series MKB

Cylinder switch type:
D Version left turning* (turns counter-?clockwise at terminals) Piston diameter [mm] 16 Clamping stroke [mm] 10 Rotary lift [mm] 7.5 piston effective diameter when clamping [mm] 13.9 G (compressed air port) M 5 Repair sets SQK 16 REP A [mm] 29 B [mm] 3.0 C [mm] 20.0 D [mm] 7 E [mm] 6 - 16 F [mm] 5.5 H [mm] 8 I [mm] 5 M (retracted) [mm] 31.5 M (extended) [mm] 49.0 N [mm] 11 O [mm] 36 P [mm] 25 Q [mm] 15.5 R [mm] 35.5 S [mm] 12.0 U 11 V M 4 Y (+0/-0.05) [mm] 14 Z M 4 Weight 150 g / pcs GTIN 4050571930011 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
