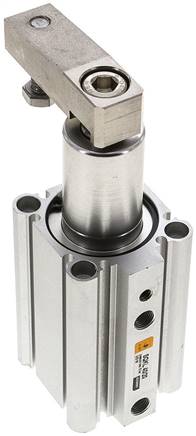

SQKL 40/20 (EMC) Swivel Clamps / Clamping Cylinder Ø 40 Mm, Clamping Stroke 20Mm Left Turning (Turns Counter-Clockwis

Genuine EMC SQKL 40/20 – SQKL 40/20 (EMC) Swivel Clamps / Clamping Cylinder Ø 40 Mm, Clamping Stroke 20Mm Left Turning (Turns Counter-Clockwis. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SQKL 40/20
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SQKL 40/20 – SQKL 40/20 (EMC) Swivel Clamps / Clamping Cylinder Ø 40 Mm, Clamping Stroke 20Mm Left Turning (Turns Counter-Clockwis. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SQKL 40/20
• Brand: EMC
• Product: SQKL 40/20 (EMC) Swivel Clamps / Clamping Cylinder Ø 40 Mm, Clamping Stroke 20Mm Left Turning (Turns Counter-Clockwis

Trusted by engineers across the UK, this SQKL 40/20 (EMC) Swivel Clamps / Clamping Cylinder Ø 40 Mm, Clamping Stroke 20Mm Left Turning (Turns Counter-Clockwis is available for fast nationwide delivery from Roladex Industrial Supplies.

---

EMC Swivel – Clamps / Clamping Cylinder Ø 40 Mm, Clamping Stroke 20Mm Left Turning (Turns Counter-Clockwis

Genuine EMC part Swivel. Ideal for maintenance and replacement on pneumatic systems. If you’re matching an existing unit, the part number is the safest way to confirm compatibility.

• Part number: Swivel
• Product: Clamps / Clamping Cylinder Ø 40 Mm, Clamping Stroke 20Mm Left Turning (Turns Counter-Clockwis
• Brand: EMC
• Support: Need help cross-referencing? Send us your existing code/label and we’ll confirm.

Delivery & trade: Fast UK supply available. Request a quote for best pricing on quantities.

---

Item description

Materials:
Body: Aluminum anodised, piston rod: hard chromium plated steel, seals: NBR / PUR

Temperature range:
-10 to +70 °C

Operating pressure:
max. 10 bar

Swivel angle:
90° (± 10°)

Version:
With Magnetic piston

Note:
•only operate cylinders positioned vertically or suspended
•clamps only allowed inside the clamping stroke and on level surfaces,
•workpiece must be idle during clamping process

Advantages:
•simple mechanics, robust construction
•supplied with removable lever arm, which can be adjusted in 90° increments
•Main dimensions identical to SMC Series MKB

Cylinder switch type:
D Version left turning* (turns counter-?clockwise at terminals) Piston diameter [mm] 40 Clamping stroke [mm] 20 Rotary lift [mm] 15.0 effective piston diameter when clamping [mm] 36.7 G (compressed air port) G 1/8" Repair sets SQK 40 REP A [mm] 52 A1 [mm] 57.0 B [mm] 6.5 C [mm] 40.0 D [mm] 14 E [mm] 12 - 25 F [mm] 8.0 H [mm] 16 I [mm] 10 M (retracted) [mm] 63.0 M (extended) [mm] 98.0 N [mm] 18 O [mm] 67 P [mm] 45 Q [mm] 27.5 R [mm] 65.0 S [mm] 20.0 U 20 V M 8 Y (+0/-0.05) [mm] 30 Z M 6 Weight 800 g / pcs GTIN 4050571930158 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
