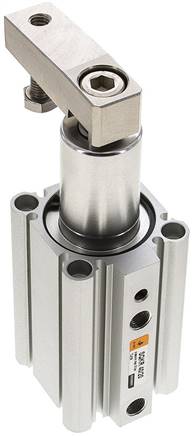

SQKR 40/20 (EMC) Swivel Clamps / Clamping Cylinder Ø 40 Mm, Clamping Stroke 20Mm Right Turning (Turns Clockwise At Te

Genuine EMC SQKR 40/20 – SQKR 40/20 (EMC) Swivel Clamps / Clamping Cylinder Ø 40 Mm, Clamping Stroke 20Mm Right Turning (Turns Clockwise At Te. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SQKR 40/20
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SQKR 40/20 – SQKR 40/20 (EMC) Swivel Clamps / Clamping Cylinder Ø 40 Mm, Clamping Stroke 20Mm Right Turning (Turns Clockwise At Te. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SQKR 40/20
• Brand: EMC
• Product: SQKR 40/20 (EMC) Swivel Clamps / Clamping Cylinder Ø 40 Mm, Clamping Stroke 20Mm Right Turning (Turns Clockwise At Te

Trusted by engineers across the UK, this SQKR 40/20 (EMC) Swivel Clamps / Clamping Cylinder Ø 40 Mm, Clamping Stroke 20Mm Right Turning (Turns Clockwise At Te is available for fast nationwide delivery from Roladex Industrial Supplies.

---

EMC Swivel – Clamps / Clamping Cylinder Ø 40 Mm, Clamping Stroke 20Mm Right Turning (Turns Clockwise At Te

Genuine EMC part Swivel. Ideal for maintenance and replacement on pneumatic systems. If you’re matching an existing unit, the part number is the safest way to confirm compatibility.

• Part number: Swivel
• Product: Clamps / Clamping Cylinder Ø 40 Mm, Clamping Stroke 20Mm Right Turning (Turns Clockwise At Te
• Brand: EMC
• Support: Need help cross-referencing? Send us your existing code/label and we’ll confirm.

Delivery & trade: Fast UK supply available. Request a quote for best pricing on quantities.

---

Item description

Materials:
Body: Aluminum anodised, piston rod: hard chromium plated steel, seals: NBR / PUR

Temperature range:
-10 to +70 °C

Operating pressure:
max. 10 bar

Swivel angle:
90° (± 10°)

Version:
With Magnetic piston

Note:
•only operate cylinders positioned vertically or suspended
•clamps only allowed inside the clamping stroke and on level surfaces,
•workpiece must be idle during clamping process

Advantages:
•simple mechanics, robust construction
•supplied with removable lever arm, which can be adjusted in 90° increments
•Main dimensions identical to SMC Series MKB

Cylinder switch type:
D Version right turning* (turns clockwise at terminals) Piston diameter [mm] 40 Clamping stroke [mm] 20 Rotary lift [mm] 15.0 effective piston diameter when clamping [mm] 36.7 G (compressed air port) G 1/8" Repair sets SQK 40 REP A [mm] 52 A1 [mm] 57.0 B [mm] 6.5 C [mm] 40.0 D [mm] 14 E [mm] 12 - 25 F [mm] 8.0 H [mm] 16 I [mm] 10 M (retracted) [mm] 63.0 M (extended) [mm] 98.0 N [mm] 18 O [mm] 67 P [mm] 45 Q [mm] 27.5 R [mm] 65.0 S [mm] 20.0 U 20 V M 8 Y (+0/-0.05) [mm] 30 Z M 6 Weight 800 g / pcs GTIN 4050571930325 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
