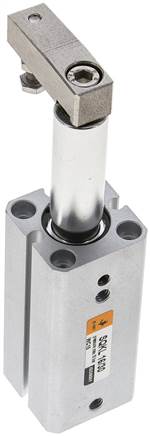

SQKL 16/30 (EMC) Swivel clamps / clamping cylinder Ø 16 mm, clamping stroke 30mm left turning (turns counter-clockwis

Genuine EMC SQKL 16/30 – SQKL 16/30 (EMC) Swivel clamps / clamping cylinder Ø 16 mm, clamping stroke 30mm left turning (turns counter-clockwis. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SQKL 16/30
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SQKL 16/30 – SQKL 16/30 (EMC) Swivel clamps / clamping cylinder Ø 16 mm, clamping stroke 30mm left turning (turns counter-clockwis. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SQKL 16/30
• Brand: EMC
• Product: SQKL 16/30 (EMC) Swivel clamps / clamping cylinder Ø 16 mm, clamping stroke 30mm left turning (turns counter-clockwis

Trusted by engineers across the UK, this SQKL 16/30 (EMC) Swivel clamps / clamping cylinder Ø 16 mm, clamping stroke 30mm left turning (turns counter-clockwis is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body: Aluminium anodised, piston rod: hard chromium plated steel, seals: NBR / PUR

Temperature range:
10 to +70 °C

Operating pressure:
max. 10 bar

Swivel angle:
90° (± 10°)

Version:
With Magnetic piston

Note:
•only operate cylinders positioned vertically or suspended
•clamps only allowed inside the clamping stroke and on level surfaces,
•workpiece must be idle during clamping process

Advantages:
•simple mechanics, robust construction
•supplied with removable lever arm, which can be adjusted in 90° increments
•Main dimensions identical to SMC Series MKB

Cylinder switch type:
D Version left turning* (turns counter-clockwise at terminals) Piston diameter [mm] 16 Clamping stroke [mm] 30 Rotary lift [mm] 7,5 effective piston diameter when clamping [mm] 13,9 G (compressed air port) M 5 Repair sets SQK 16 REP A [mm] 29 B [mm] 3,0 C [mm] 20,0 D [mm] 7 E [mm] 6 16 F [mm] 5,5 H [mm] 8 I [mm] 5 M (retracted) [mm] 51,5 M (extended) [mm] 89,0 N [mm] 11 O [mm] 36 P [mm] 25 Q [mm] 15,5 R [mm] 35,5 S [mm] 12,0 U 11 V M 4 Y (+0/0,05) [mm] 14 Z M 4 Weight 200 g / pcs GTIN 4050571930035 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
