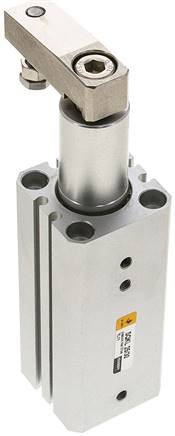

SQKL 25/30 (EMC) Swivel clamps / clamping cylinder Ø 25 mm, clamping stroke 30mm left turning (turns counter-clockwis

Genuine EMC SQKL 25/30 – SQKL 25/30 (EMC) Swivel clamps / clamping cylinder Ø 25 mm, clamping stroke 30mm left turning (turns counter-clockwis. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SQKL 25/30
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SQKL 25/30 – SQKL 25/30 (EMC) Swivel clamps / clamping cylinder Ø 25 mm, clamping stroke 30mm left turning (turns counter-clockwis. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SQKL 25/30
• Brand: EMC
• Product: SQKL 25/30 (EMC) Swivel clamps / clamping cylinder Ø 25 mm, clamping stroke 30mm left turning (turns counter-clockwis

Trusted by engineers across the UK, this SQKL 25/30 (EMC) Swivel clamps / clamping cylinder Ø 25 mm, clamping stroke 30mm left turning (turns counter-clockwis is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body: Aluminium anodised, piston rod: hard chromium plated steel, seals: NBR / PUR

Temperature range:
10 to +70 °C

Operating pressure:
max. 10 bar

Swivel angle:
90° (± 10°)

Version:
With Magnetic piston

Note:
•only operate cylinders positioned vertically or suspended
•clamps only allowed inside the clamping stroke and on level surfaces,
•workpiece must be idle during clamping process

Advantages:
•simple mechanics, robust construction
•supplied with removable lever arm, which can be adjusted in 90° increments
•Main dimensions identical to SMC Series MKB

Cylinder switch type:
D Version left turning* (turns counter-clockwise at terminals) Piston diameter [mm] 25 Clamping stroke [mm] 30 Rotary lift [mm] 9,5 effective piston diameter when clamping [mm] 21,9 G (compressed air port) M 5 Repair sets SQK 25 REP A [mm] 40 B [mm] 4,0 C [mm] 28,0 D [mm] 10 E [mm] 10 21 F [mm] 10,0 H [mm] 12 I [mm] 7 M (retracted) [mm] 52,0 M (extended) [mm] 91,5 N [mm] 14 O [mm] 51 P [mm] 35 Q [mm] 27,5 R [mm] 63,0 S [mm] 15,5 U 16 V M 6 Y (+0/0,05) [mm] 23 Z M 6 Weight 490 g / pcs GTIN 4050571930097 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
