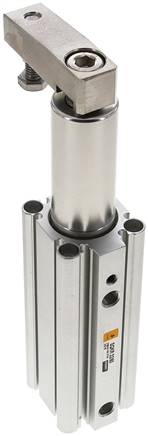

SQKR 32/50 (EMC) Swivel clamps / clamping cylinder Ø 32 mm, clamping stroke 50mm right turning (turns clockwise at te

Genuine EMC SQKR 32/50 – SQKR 32/50 (EMC) Swivel clamps / clamping cylinder Ø 32 mm, clamping stroke 50mm right turning (turns clockwise at te. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SQKR 32/50
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SQKR 32/50 – SQKR 32/50 (EMC) Swivel clamps / clamping cylinder Ø 32 mm, clamping stroke 50mm right turning (turns clockwise at te. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SQKR 32/50
• Brand: EMC
• Product: SQKR 32/50 (EMC) Swivel clamps / clamping cylinder Ø 32 mm, clamping stroke 50mm right turning (turns clockwise at te

Trusted by engineers across the UK, this SQKR 32/50 (EMC) Swivel clamps / clamping cylinder Ø 32 mm, clamping stroke 50mm right turning (turns clockwise at te is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Body: Aluminium anodised, piston rod: hard chromium plated steel, seals: NBR / PUR

Temperature range:
10 to +70 °C

Operating pressure:
max. 10 bar

Swivel angle:
90° (± 10°)

Version:
With Magnetic piston

Note:
•only operate cylinders positioned vertically or suspended
•clamps only allowed inside the clamping stroke and on level surfaces,
•workpiece must be idle during clamping process

Advantages:
•simple mechanics, robust construction
•supplied with removable lever arm, which can be adjusted in 90° increments
•Main dimensions identical to SMC Series MKB

Cylinder switch type:
D Version right turning* (turns clockwise at terminals) Piston diameter [mm] 32 Clamping stroke [mm] 50 Rotary lift [mm] 15,0 effective piston diameter when clamping [mm] 27,7 G (compressed air port) G 1/8" Repair sets SQK 32 REP A [mm] 45 A1 [mm] 49,5 B [mm] 6,5 C [mm] 34,0 D [mm] 14 E [mm] 12 25 F [mm] 13,0 H [mm] 16 I [mm] 10 M (retracted) [mm] 85,5 M (extended) [mm] 150,5 N [mm] 18 O [mm] 67 P [mm] 45 Q [mm] 30,5 R [mm] 71,5 S [mm] 20,0 U 20 V M 8 Y (+0/0,05) [mm] 30 Z M 6 Weight 950 g / pcs GTIN 4050571930301 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
