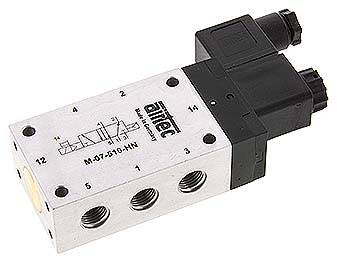

Airtec | M 07510HN 24VAC | 5/2-Way | Solenoid Valve | 1/4"

Item description

Materials:
Body: anodized aluminum and plastic, internal parts: stainless steel and brass, seal: plastic / NBR

Temperature range:
-10 to +70 °C

Media:
oiled and unoiled filtered compressed air

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Information:
These valves are always supplied with a solenoid coil and a connector plug.

Structural shape solenoid coil:
N (plug size 1) (M 20 510: O, plug size 0)

Pressure input:
Connection 1 Version Standard Control voltage 24 V AC Resetting by Pneumatic spring Thread (3x) G 1/4" Thread exhaust air (2x) G 1/4" Nominal width [mm] 9 flow [l/min] 1580 Operating pressure [bar] 1,5 - 10 Power consumption (AC) [VA] 4 Spare solenoid coil MAG N 24VAC Weight 410 g / pcs GTIN 4050571471422 Customs duty number 84812090 Manufacturer Airtec
