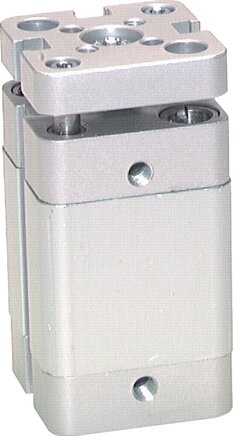

Airtec | NXDA 100/30 | Double Acting | Compact Cylinder | Stroke 30mm | Bore 100mm

Item description

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread male thread Piston diameter [mm] 100 Stroke [mm] 30 Version non-rotating piston rod M (compressed air port) G 1/4" Repair sets NXD 100 REP A [mm] 124 B [mm] 25 C [mm] 8 D [mm] 8,5 E M 10 F [mm] 13,5 G [mm] 30 H [mm] 14 I M 10 J [mm] 66,5 K [mm] 10 L [mm] 0 N [mm] 10,5 O [mm] 19,25 P [mm] 103 R [mm] 80 S [mm] 56,6 T [mm] 22 U [mm] 8,5 W [mm] 10,0 X [mm] 3,0 Y [mm] 14 Z [mm] 10,0 Weight 3,4 kg / pcs GTIN 4050571529932 Customs duty number 84799070 RoHS compliant Yes Manufacturer Airtec
