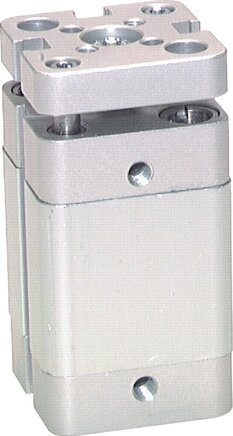

Airtec | NXDA 40/200 | Double Acting | Compact Cylinder | Stroke 200mm | Bore 40mm

Item description

Materials:
Head and base: Anodized aluminum, cylinder tube: Anodized aluminum, piston rod: 1.4305, seal: PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -male thread Piston diameter [mm] 40 Stroke [mm] 200 Version non-rotating piston rod M (compressed air port) G 1/8" Repair sets NXD 40 REP A [mm] 58 B [mm] 12 C [mm] 6 D [mm] 5.2 E M 6 F [mm] 9.0 G [mm] 17 H [mm] 10 I M 5 J [mm] 45.5 K [mm] 5 L [mm] 3 N [mm] 8.0 O [mm] 14.75 P [mm] 42 R [mm] 33 S [mm] 23.3 T [mm] 10 U [mm] 5.5 W [mm] 6.5 X [mm] 2.5 Y [mm] 10 Z [mm] 6.5 Weight 1.4 kg / pcs GTIN 4050571530679 Customs duty number 84799070 RoHS compliant Yes Manufacturer Airtec
