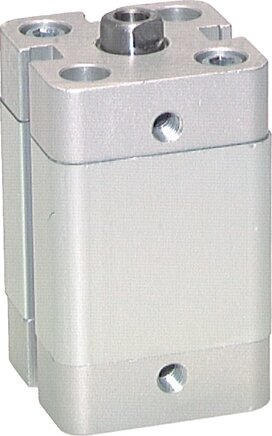

Airtec | NXD 50/250 | Double Acting | Compact Cylinder | Stroke 250mm | Bore 50mm

Item description

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread male thread Piston diameter [mm] 50 Stroke [mm] 250 Version Standard G1 (piston rod female thread) M 8 M (compressed air port) G 1/8" Repair sets NXD 50 REP A [mm] 67 B [mm] 16 C [mm] 6 D [mm] 6,7 E M 8 F [mm] 10,5 J [mm] 45,5 L [mm] 0 N [mm] 8,0 O [mm] 14,75 P [mm] 50 Q [mm] 12 T [mm] 13 U [mm] 6,5 Z [mm] 7,5 Weight 1,8 kg / pcs GTIN 4050571528959 Customs duty number 84799070 RoHS compliant Yes Manufacturer Airtec
