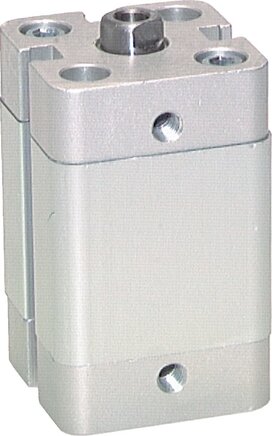

Airtec | NXD 63/200 | Double Acting | Compact Cylinder | Stroke 200mm | Bore 63mm

Item description

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread male thread Piston diameter [mm] 63 Stroke [mm] 200 Version Standard G1 (piston rod female thread) M 8 M (compressed air port) G 1/8" Repair sets NXD 63 REP A [mm] 80 B [mm] 16 C [mm] 8 D [mm] 8,5 E M 10 F [mm] 13,5 J [mm] 50,0 L [mm] 0 N [mm] 8,0 O [mm] 14,25 P [mm] 62 Q [mm] 14 T [mm] 13 U [mm] 8,5 Z [mm] 7,5 Weight 1,9 kg / pcs GTIN 4050571529246 Customs duty number 84799070 RoHS compliant Yes Manufacturer Airtec
