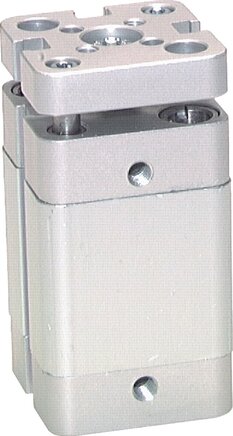

Airtec | NXDA 63/200 | Double Acting | Compact Cylinder | Stroke 200mm | Bore 63mm

Item description

Materials:
Head and base: Anodized aluminum, cylinder tube: Anodized aluminum, piston rod: 1.4305, seal: PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -male thread Piston diameter [mm] 63 Stroke [mm] 200 Version non-?rotating piston rod M (compressed air port) G 1/8" Repair sets NXD 63 REP A [mm] 80 B [mm] 16 C [mm] 8 D [mm] 8.5 E M 10 F [mm] 13.5 G [mm] 22 H [mm] 10 I M 6 J [mm] 50.0 K [mm] 6 L [mm] 0 N [mm] 8.0 O [mm] 14.25 P [mm] 62 R [mm] 50 S [mm] 35.4 T [mm] 13 U [mm] 8.5 W [mm] 7.5 X [mm] 2.5 Y [mm] 12 Z [mm] 7.5 Weight 2.4 kg / pcs GTIN 4050571531003 Customs duty number 84799070 RoHS compliant Yes Manufacturer Airtec
