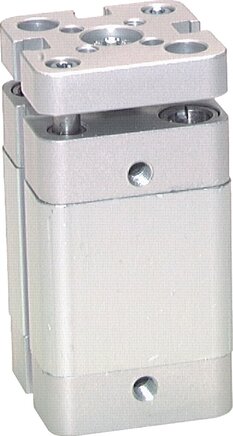

Airtec | NXDA 80/50 | Double Acting | Compact Cylinder | Stroke 50mm | Bore 80mm

Item description

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread male thread Piston diameter [mm] 80 Stroke [mm] 50 Version non-rotating piston rod M (compressed air port) G 1/8" Repair sets NXD 80 REP A [mm] 100 B [mm] 20 C [mm] 8 D [mm] 8,5 E M 10 F [mm] 13,5 G [mm] 28 H [mm] 14 I M 8 J [mm] 56,0 K [mm] 8 L [mm] 0 N [mm] 8,5 O [mm] 16,00 P [mm] 82 R [mm] 65 S [mm] 46,0 T [mm] 17 U [mm] 8,5 W [mm] 9,0 X [mm] 3,0 Y [mm] 14 Z [mm] 8,0 Weight 2,2 kg / pcs GTIN 4050571531225 Customs duty number 84799070 RoHS compliant Yes Manufacturer Airtec
