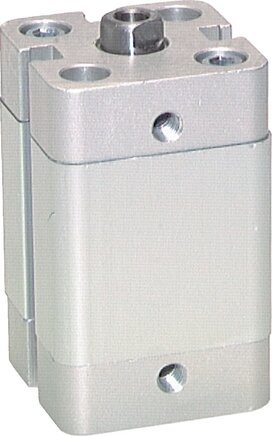

Airtec | NXE 100/15 | Single Acting | Compact Cylinder | Stroke 15mm | Bore 100mm

Item description

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread male thread Piston diameter [mm] 100 Stroke [mm] 15 Version Standard G1 (piston rod female thread) M 12 M (compressed air port) G 1/4" Repair sets NXE 100 REP A [mm] 124 B [mm] 25 C [mm] 8 D [mm] 8,5 E M 10 F [mm] 13,5 J [mm] 66,5 L [mm] 0 N [mm] 10,5 O [mm] 19,25 P [mm] 103 Q [mm] 20 T [mm] 22 U [mm] 8,5 Z [mm] 10,0 Weight 2,5 kg / pcs GTIN 4050571531904 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
