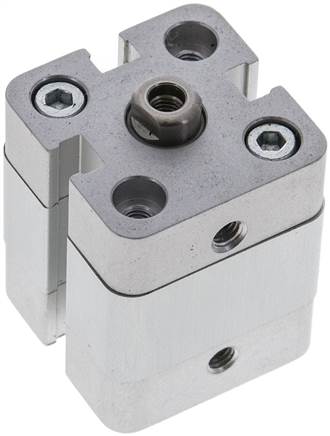

Airtec | NXE 20/5 | Single Acting | Compact Cylinder | Stroke 5mm | Bore 20mm

Item description

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread male thread Piston diameter [mm] 20 Stroke [mm] 5 Version Standard G1 (piston rod female thread) M 5 M (compressed air port) M 5 Repair sets NXE 20 REP A [mm] 36 B [mm] 10 C [mm] 6 D [mm] 4,2 E M 5 F [mm] 7,5 J [mm] 38,0 L [mm] 0 N [mm] 8,0 O [mm] 12,25 P [mm] 22 Q [mm] 10 T [mm] 8 U [mm] 4,5 Z [mm] 4,5 Weight 130 g / pcs GTIN 4050571532284 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
