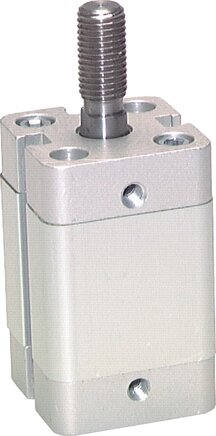

Airtec | NXEE 32/10-AG | Single Acting | Compact Cylinder | Stroke 10mm | Bore 32mm

Item description

Materials:
Head and base: Anodized aluminum, cylinder tube: Anodized aluminum, piston rod: 1.4305, seal: PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -male thread Piston diameter [mm] 32 Stroke [mm] 10 Version Extended in idle position, piston rod with male thread G2 (piston rod male thread) M 10x1.25 M (compressed air port) G 1/8" Repair sets NXE 32 REP A [mm] 50 C [mm] 6 D [mm] 5.2 E M 6 F [mm] 9.0 J [mm] 44.5 L [mm] 4 N [mm] 8.0 O [mm] 14.50 P [mm] 32 Q [mm] 12 T [mm] 10 U [mm] 5.5 V [mm] 22 Z [mm] 6.0 GTIN 4050571533465 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
