Airtec | ZSG 12 | Cylinder Switch

Item description

Materials:
Body: Die-cast metal, fixing clamp and screw: Burnished steel

Connecting line:
PVC cable

Protection class:
IP 67

Temperature range:
-20 to +70 °C

Note:

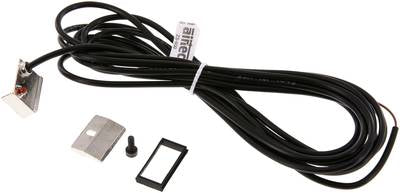

The proximity switch with LED is used for contact-less position indication of short-stroke cylinders with a magnetic piston. Fastening is done with the accompanying fastening material.

Suitable:
For short stroke cylinders types NDM, NEM and NDM, etc. A Version 2-?wire reed sensor, red LED Operating voltage 3 - 42 V AC/DC Switching NO contact Max. switching current [mA] 300 Max. capacity 1 W / VA Connecting line 3 m, 2x 0.25 mm² Weight 60 g / pcs GTIN 4050571817213 Customs duty number 85365019 RoHS compliant Yes Manufacturer Airtec
