Description
Item description

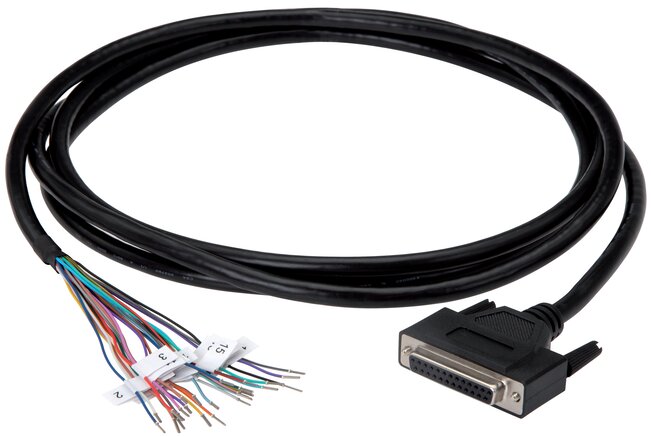

Description:Preassembled connecting cables with a 9pin, 15pin, 25pin, or 44pin DSub socket on one side and loose cable ends on the other. The individual wires are provided with pin numbers and wire sleeves (44pin: Cable identification in accordance with DIN 47100).
Temperature range:
0 to +80 °C
Voltage:
max. 20 V AC / 30 V DC, max. 1 A (44pin: max. 2.5 A)
Protection class:
IP 40 (44pin: IP 65)
Cable:
PVC cable (AWG 24) 9x 0.23 mm², 15x 0.23 mm² or 25x 0.23 mm² (44pole: PVC cable (AWG 23) 44x 0.25 mm²)
