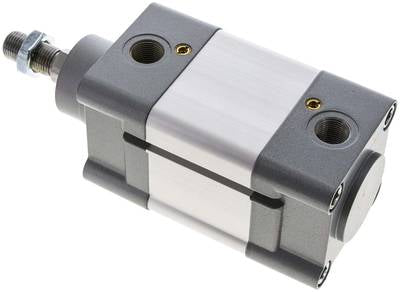

Airtec | XL 63/10 | ISO 15552 Cylinder | Stroke 10mm | Bore 63mm

Item description

Materials:
Head and foot: stoveenamelled diecast aluminium, cylinder tube: anodized aluminium profile tube, piston rod: hard chromium plated steel, piston: complete piston (ST / NBR), seal: NBR / PUR

Temperature range:
20°C to +80°C

Operating pressure:
max. 10 bar

Optional:
FKM seals (temperature range: 10°C to max. +150°C, without magnetic piston) V, stainless steel piston rod EK, ATEX approval Ex II 2GD c T5 T100° 20°C <=Ta<= 80°C X

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A Piston diameter [mm] 63 Stroke [mm] 10 Version Standard A (thread) M 16x1,5 G (compressed air port) G 3/8" Repair sets XL 63 REP B [mm] 20 C [mm] 45 D [mm] 25,0 F [mm] 32 G [mm] 37 H [mm] 158 K [mm] 4 M [mm] 74,0 N [mm] 56,5 CH [mm] 17 RT M 8 Weight 1,9 kg / pcs GTIN 4050571799199 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
