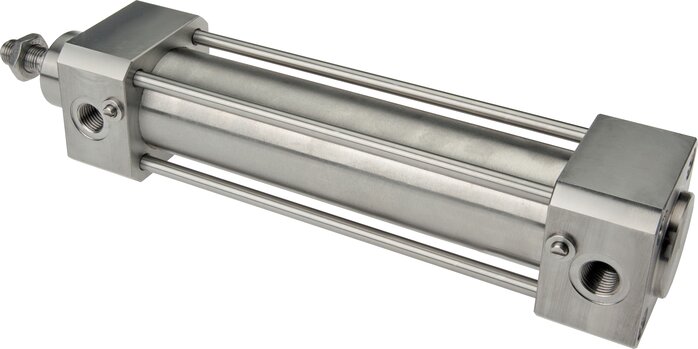

Airtec | TM 100/250 ES | ISO 15552 Cylinder | Stroke 250mm

Item description

Materials:
Head, base and cylinder pipe: 1.4301, piston rod: 1.4401, seal: NBR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
C in combination with mounting E1 Piston diameter [mm] 100 Stroke [mm] 250 A (piston rod thread) M 20x1,5 G (compressed air port) G 1/2" B [mm] 25 C [mm] 55 D [mm] 38,0 F [mm] 40 G [mm] 51 H [mm] 189 K [mm] 4 M [mm] 110 N [mm] 89,0 CH [mm] 22 RT M 10 Weight 13 kg / pcs GTIN 4050571698171 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
