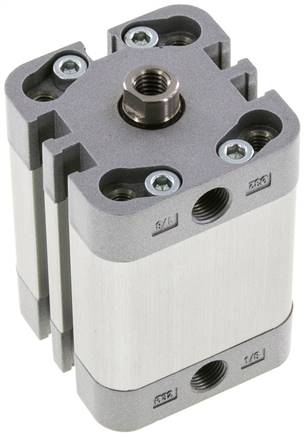

Airtec | NAD 32/25 | Double Acting | ISO 21287 Cylinder | Stroke 25mm | Bore 32mm

Item description

Materials:
Head and foot: Aluminum, cylinder tube: Anodized aluminum, piston rod: stainless steel, seal: NBR/PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -male thread Piston diameter [mm] 32 Stroke [mm] 25 Version Standard KF (piston rod female thread) M 8 G (compressed air port) G 1/8" Repair sets NAD 32 REP A [mm] 12 AF [mm] 12 B [mm] 9 BG [mm] 14.0 CH [mm] 10 E [mm] 49.0 LA [mm] 4.5 RT M 6 TG [mm] 32.5 WH [mm] 7 ZA [mm] 44 ZB [mm] 51 ZC [mm] 29 Weight 310 g / pcs GTIN 4050571517649 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
