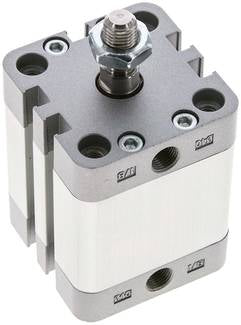

Airtec | NAD 40/25-AG | Double Acting | ISO 21287 Cylinder | Stroke 25mm | Bore 40mm

Item description

Materials:
Head and foot: Aluminum, cylinder tube: Anodized aluminum, piston rod: stainless steel, seal: NBR/PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -male thread Piston diameter [mm] 40 Stroke [mm] 25 Version Piston rod with male thread KK (piston rod male thread) M 10x1.25 G (compressed air port) G 1/8" Repair sets NAD 40 REP A [mm] 12 AK [mm] 19 B [mm] 9 BG [mm] 14.5 CH [mm] 10 E [mm] 54.5 LA [mm] 5.0 RT M 6 TG [mm] 38.0 WH [mm] 7 ZA [mm] 45 ZB [mm] 52 ZC [mm] 29 Weight 390 g / pcs GTIN 4050571518011 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
