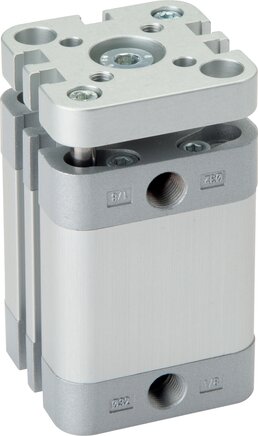

Airtec | NADA 63/25 | Double Acting | ISO 21287 Cylinder | Stroke 25mm | Bore 63mm

Item description

Materials:
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread male thread Piston diameter [mm] 63 Stroke [mm] 25 Version non-rotating piston rod G (compressed air port) G 1/8" Repair sets NAD 63 REP A [mm] 16 B [mm] 12 BG [mm] 13,8 CH [mm] 13 D [mm] 22 D1 [mm] 50 D2 M 6 D3 [mm] 6 E [mm] 77,0 LA [mm] 5,0 RT M 8 TG [mm] 56,5 WH [mm] 8 ZA [mm] 49 ZC [mm] 34 ZD [mm] 69 Weight 1 kg / pcs GTIN 4050571520199 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
