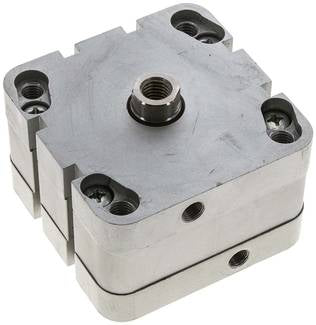

Airtec | NAD 80/5 | Double Acting | ISO 21287 Cylinder | Stroke 5mm | Bore 80mm

Item description

Materials:
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread male thread Piston diameter [mm] 80 Stroke [mm] 5 Version Standard KF (piston rod female thread) M 12 G (compressed air port) G 1/8" Repair sets NAD 80 REP A [mm] 20 AF [mm] 20 B [mm] 12 BG [mm] 15,0 CH [mm] 17 E [mm] 95,5 LA [mm] 3,0 RT M 10 TG [mm] 72,0 WH [mm] 10 ZA [mm] 54 ZB [mm] 64 ZC [mm] 38 Weight 1,2 kg / pcs GTIN 4050571519117 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
