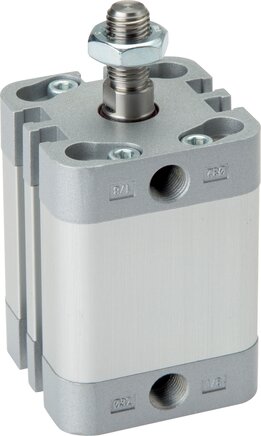

Airtec | NAEE 100/25-AG | Single Acting | ISO 21287 Cylinder | Stroke 25mm | Bore 100mm

Item description

Materials:
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread male thread Piston diameter [mm] 100 Stroke [mm] 25 Version Extended in idle position, piston rod with male thread KK (piston rod male thread) M 16x1,5 G (compressed air port) G 1/8" Repair sets NAD 100 REP A [mm] 25 AK [mm] 28 B [mm] 12 BG [mm] 19,5 CH [mm] 21 E [mm] 113,5 LA [mm] 3,0 RT M 10 TG [mm] 89,0 WH [mm] 10 ZA [mm] 67 ZB [mm] 77 ZC [mm] 46 GTIN 4050571521905 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
