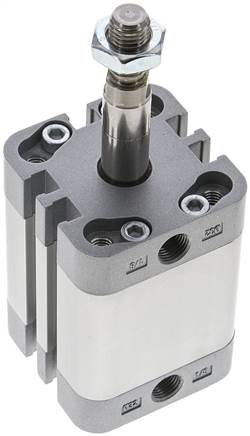

Airtec | NAEE 32/25-AG | Single Acting | ISO 21287 Cylinder | Stroke 25mm | Bore 32mm

Item description

Materials:
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread male thread Piston diameter [mm] 32 Stroke [mm] 25 Version Extended in idle position, piston rod with male thread KK (piston rod male thread) M 10x1,25 G (compressed air port) G 1/8" Repair sets NAD 32 REP A [mm] 12 AK [mm] 19 B [mm] 9 BG [mm] 14,0 CH [mm] 10 E [mm] 49,0 LA [mm] 4,5 RT M 6 TG [mm] 32,5 WH [mm] 7 ZA [mm] 44 ZB [mm] 51 ZC [mm] 29 Weight 340 g / pcs GTIN 4050571522193 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
