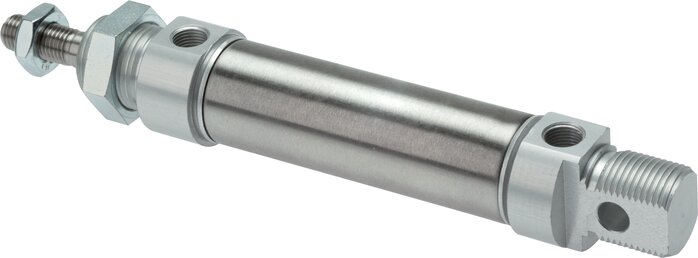

Airtec Airtec | ZDMK 16/160 | Double Acting | ISO 6432 Cylinder | Stroke 160mm | Bore 16mm
Roll over image to zoom in Click on image to zoom
Airtec Airtec | ZDMK 16/160 | Double Acting | ISO 6432 Cylinder | Stroke 160mm | Bore 16mm

Airtec | ZDMK 16/160 | Double Acting | ISO 6432 Cylinder | Stroke 160mm | Bore 16mm

Airtec Type: Cylinders/Sensors & Accessories - Shock Absorber - Vacuum Components SKU: ZDMK 16/160 MPN: ZDMK 16/160 GTIN: 4050571812492
Price:
£74.10
ex VAT
£88.92
inc VAT
Stock:
In stock
Fast email response. 30–60 mins (Mon–Fri).

Description

Item description

Materials:
 Head and foot: anodized aluminum, cylinder tube: 1.4301, piston rod: 1.4305 seal: NBR / PUR

Temperature range:
 -20°C to +80°C

Operating pressure:
 max. 10 bar

Version:
 With Magnetic piston

Cylinder switch type:
 D in combination with fastening D1, C in combination with fastening C1

Optional:
 FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -> continuous piston rod A (piston rod thread) M 6 B (fastening thread) M 16x1.5 G (compressed air port) M 5 A1 [mm] 6 C [mm] 19 D [mm] 12 E [mm] 6 F [mm] 16 G [mm] 82 K [mm] 22 L [mm] 18 M [mm] 109 N [mm] 9 P [mm] 53 CH [mm] 5 Weight 210 g / pcs GTIN 4050571812492 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
