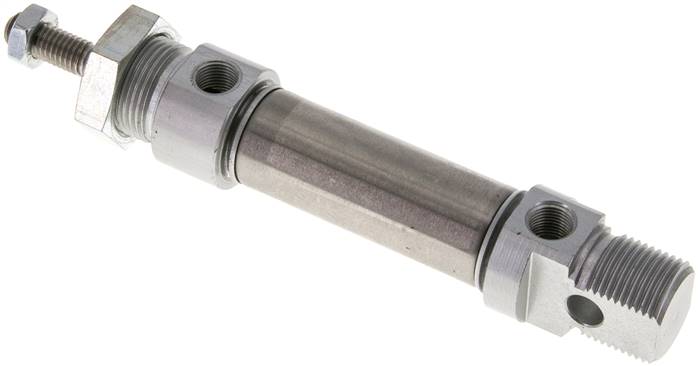

Airtec Airtec | ZDMO 20/25 | Double Acting | ISO 6432 Cylinder | Stroke 25mm | Bore 20mm
Roll over image to zoom in Click on image to zoom
Airtec Airtec | ZDMO 20/25 | Double Acting | ISO 6432 Cylinder | Stroke 25mm | Bore 20mm

Airtec | ZDMO 20/25 | Double Acting | ISO 6432 Cylinder | Stroke 25mm | Bore 20mm

Airtec Type: Cylinders/Sensors & Accessories - Shock Absorber - Vacuum Components SKU: ZDMO 20/25 MPN: ZDMO 20/25 GTIN: 4050571813338
Price:
£75.41
ex VAT
£90.49
inc VAT
Stock:
In stock
Fast email response. 30–60 mins (Mon–Fri).

Description

Item description

Materials:
 Head and foot: anodized aluminum, cylinder tube: 1.4301, piston rod: 1.4305 seal: NBR / PUR

Temperature range:
 -20°C to +80°C

Operating pressure:
 max. 10 bar

Version:
 With Magnetic piston

Cylinder switch type:
 D in combination with fastening D1, C in combination with fastening C1

Optional:
 FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -> non-?rotating piston rod (hexagonal) A (piston rod thread) M 8 B (fastening thread) M 22x1.5 G (compressed air port) G 1/8" A1 [mm] 8 C [mm] 27 D [mm] 16 E [mm] 8 F [mm] 20 G [mm] 95 K [mm] 24 L [mm] 20 M [mm] 131 N [mm] 12 P [mm] 67 CH [mm] 7 Weight 195 g / pcs GTIN 4050571813338 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
