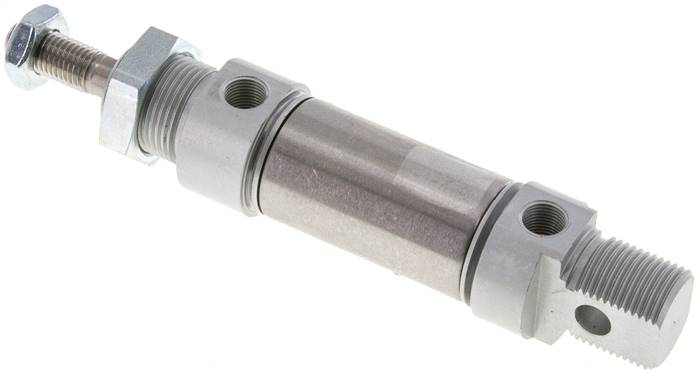

Airtec Airtec | ZDM 25/15 | Double Acting | ISO 6432 Cylinder | Stroke 15mm | Bore 25mm
Roll over image to zoom in Click on image to zoom
Airtec Airtec | ZDM 25/15 | Double Acting | ISO 6432 Cylinder | Stroke 15mm | Bore 25mm

Airtec | ZDM 25/15 | Double Acting | ISO 6432 Cylinder | Stroke 15mm | Bore 25mm

Airtec Type: Cylinders/Sensors & Accessories - Shock Absorber - Vacuum Components SKU: ZDM 25/15 MPN: ZDM 25/15 GTIN: 4050571812027
Price:
£56.87
ex VAT
£68.24
inc VAT
Stock:
In stock
Fast email response. 30–60 mins (Mon–Fri).

Description

Item description

Materials:
 Head and foot: anodized aluminum, cylinder tube: 1.4301, piston rod: 1.4305 seal: NBR / PUR

Temperature range:
 -20°C to +80°C

Operating pressure:
 max. 10 bar

Version:
 With Magnetic piston

Cylinder switch type:
 D in combination with fastening D1, C in combination with fastening C1

Optional:
 FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -> Standard A (piston rod thread) M 10x1.25 B (fastening thread) M 22x1.5 G (compressed air port) G 1/8" A1 [mm] 10 C [mm] 30 D [mm] 16 E [mm] 8 F [mm] 22 G [mm] 104 K [mm] 28 L [mm] 22 M [mm] 140 N [mm] 12 P [mm] 68 CH [mm] 9 Weight 260 g / pcs GTIN 4050571812027 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
