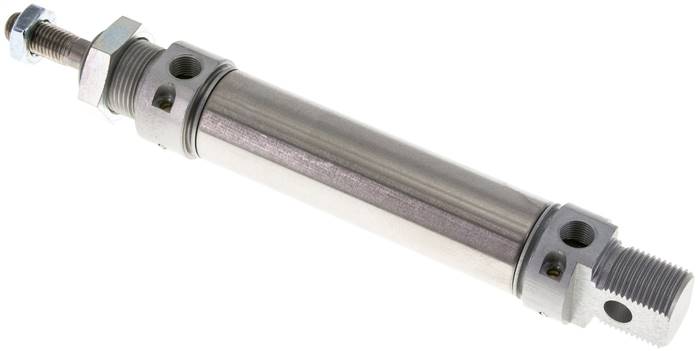

Airtec | ZDPM 25/65 | Double Acting | ISO 6432 Cylinder | Stroke 65mm | Bore 25mm

Item description

Materials:
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: 1.4305 seal: NBR / PUR

Temperature range:
20°C to +80°C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1

Optional:
FKM seals (temperature range: 20°C to max. +150°C, without magnetic piston) V, ATEX approval Ex II 2GD c T5 T100° 20°C <=Ta<= 80°C X Piston diameter [mm] 25 Stroke [mm] 65 Version adjustable end position damping A (piston rod thread) M 10x1,25 B (fastening thread) M 22x1,5 G (compressed air port) G 1/8" A1 [mm] 10 C [mm] 30 D [mm] 16 E [mm] 8 F [mm] 22 G [mm] 104 K [mm] 28 L [mm] 22 M [mm] 140 N [mm] 12 P [mm] 68 CH [mm] 9 Weight 310 g / pcs GTIN 4050571814281 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
