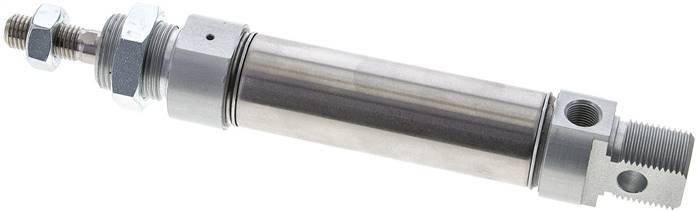

Airtec | ZEM 25/50 | Single Acting | ISO 6432 Cylinder | Stroke 50mm | Bore 25mm

Item description

Materials:
Head and foot: anodized aluminum, cylinder tube: 1.4301, piston rod: 1.4305 seal: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1 Piston diameter [mm] 25 Stroke [mm] 50 A (piston rod thread) M 10x1.25 B (fastening thread) M 22x1.5 G (compressed air port) G 1/8" A1 [mm] 10 C [mm] 30 D [mm] 16 E [mm] 8 F [mm] 22 G [mm] 104 K [mm] 28 L [mm] 22 M [mm] 140 N [mm] 12 P [mm] 68 CH [mm] 9 Weight 300 g / pcs GTIN 4050571815813 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
