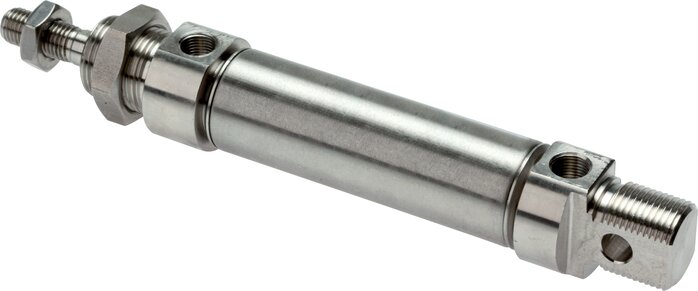

Airtec | ZD 25/10 ES-V | ISO 6432 Cylinder | Stroke 10mm | Bore 25mm

Item description

Materials:
Head and foot: 1.4301, cylinder tube: 1.4301, piston rod: 1.4436, seals: NBR / PUR

Temperature range:
-20°C to +80°C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
C in combination with mounting E1

Optional:
FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V Piston diameter [mm] 25 Stroke [mm] 10 Version FKM seals, no magnetic piston A (piston rod thread) M 10x1.25 B (fastening thread) M 22x1.5 G (compressed air port) G 1/8" A1 [mm] 10 C [mm] 30 D [mm] 16 E [mm] 8 F [mm] 22 G [mm] 104 K [mm] 28 L [mm] 22 M [mm] 140 N [mm] 12 P [mm] 68 CH [mm] 9 GTIN 4050571811990 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
