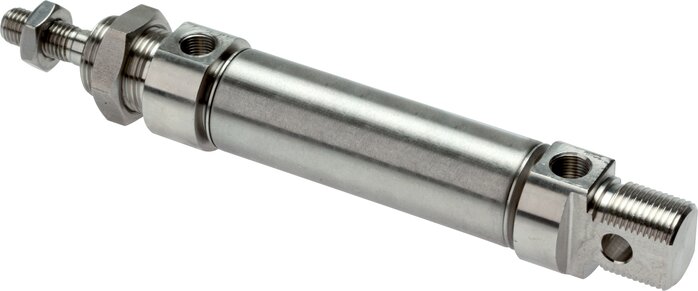

Airtec | ZDM 25/320 ES | ISO 6432 Cylinder | Stroke 320mm | Bore 25mm

Item description

Materials:
Head and foot: 1.4301, cylinder tube: 1.4301, piston rod: 1.4436, seals: NBR / PUR

Temperature range:
20°C to +80°C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
C in combination with mounting E1

Optional:
FKM seals (temperature range: 20°C to max. +150°C, without magnetic piston) V Piston diameter [mm] 25 Stroke [mm] 320 Version Standard A (piston rod thread) M 10x1,25 B (fastening thread) M 22x1,5 G (compressed air port) G 1/8" A1 [mm] 10 C [mm] 30 D [mm] 16 E [mm] 8 F [mm] 22 G [mm] 104 K [mm] 28 L [mm] 22 M [mm] 140 N [mm] 12 P [mm] 68 CH [mm] 9 Weight 750 g / pcs GTIN 4050571812171 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
