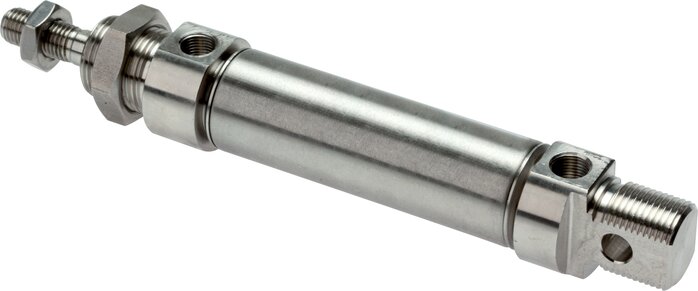

Airtec Airtec | ZDM 25/400 ES | ISO 6432 Cylinder | Stroke 400mm | Bore 25mm
Roll over image to zoom in Click on image to zoom
Airtec Airtec | ZDM 25/400 ES | ISO 6432 Cylinder | Stroke 400mm | Bore 25mm

Airtec | ZDM 25/400 ES | ISO 6432 Cylinder | Stroke 400mm | Bore 25mm

Airtec Type: Cylinders/Sensors & Accessories - Shock Absorber - Vacuum Components SKU: ZDM 25/400 ES MPN: ZDM 25/400 ES GTIN: 4050571812201
Price:
£118.88
ex VAT
£142.66
inc VAT
Stock:
In stock
Fast email response. 30–60 mins (Mon–Fri).

Description

Item description

Materials:
 Head and foot: 1.4301, cylinder tube: 1.4301, piston rod: 1.4436, seals: NBR / PUR

Temperature range:
 -20°C to +80°C

Operating pressure:
 max. 10 bar

Version:
 With Magnetic piston

Cylinder switch type:
 C in combination with mounting E1

Optional:
 FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V
Pis­ton di­am­e­ter [mm] 25
Stroke [mm] 400
Ver­sion Stan­dard
A (pis­ton rod thread) M 10x1,25
B (fas­ten­ing thread) M 22x1,5
G (com­pressed air port) G 1/8"
A1 [mm] 10
C [mm] 30
D [mm] 16
E [mm] 8
F [mm] 22
G [mm] 104
K [mm] 28
L [mm] 22
M [mm] 140
N [mm] 12
P [mm] 68
CH [mm] 9
Weight 850 g / pcs
GTIN 4050571812201
Customs duty number 84123100
RoHS compliant Yes
Manufacturer Airtec
