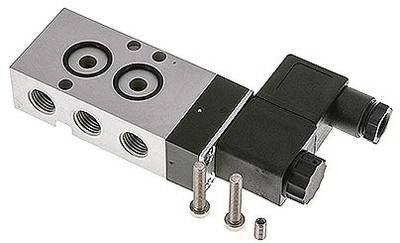

Airtec | KN 05511HN 230V | 5/2-Way | NAMUR Solenoid Valve | 1/4"

Item description

Materials:
Body: anodized aluminum and plastic, internal parts: aluminum, stainless steel and brass, seal: NBR

Temperature range:
-10 to +70 °C

Media:
oiled and unoiled filtered compressed air

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Structural shape solenoid coil:
N (plug size 1)

Pressure input:
Connection 1

Function:
3/2-way version vented in the spring chamber of the actuator, therefore an exhaust air flow control is not possible. For 5/2-way version, an exhaust air flow control (speed controller) is possible with help from 2 piece flow control silencer DS 14. Please order the flow control silencer separately.

Information:
These valves are always supplied with a solenoid coil and a connector plug. Version Standard Control voltage 230 V AC Switching 5/2-way function spring return Thread (1x) G 1/4" Thread exhaust air 2x G 1/4" flow [l/min] 800 Operating pressure [bar] 3 - 10 Power consumption (AC) [VA] 4 Spare solenoid coil MAG N 230V Weight 300 g / pcs GTIN 4050571442507 Customs duty number 84812090 RoHS compliant Yes Manufacturer Airtec
