Description
Item description
Materials:Head and foot: stove-enamelled die-cast aluminum, cylinder tube: anodized aluminum profile tube, piston rod: hard chromium plated steel, piston: complete piston (ST / NBR), seal: NBR / PUR
Temperature range:
-20°C to +80°C
Operating pressure:
max. 10 bar
Optional:
FKM seals (temperature range: -10°C to max. +150°C, without magnetic piston) -V, stainless steel piston rod -EK, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X
Version:
with magnetic pistons and adjustable end position damping
Cylinder switch type:
D, A
| Piston diameter [mm] | 80 |

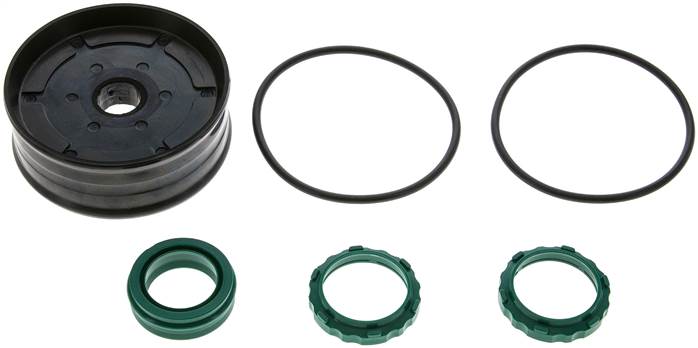

| Version | Repair set |
| Weight | 380 g / pcs |
| GTIN | 4050571800123 |
| Customs duty number | 84123100 |
| RoHS compliant | Yes |
| Manufacturer | Airtec |
