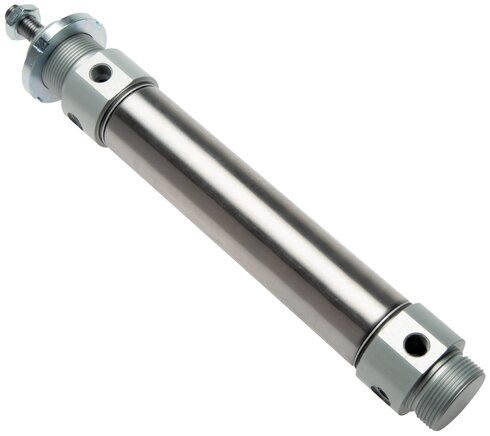

Airtec | DSWPM 50/400 | Round Cylinder | Stroke 400mm | Bore 50mm

Item description

Materials:
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: hard chromium plated steel, seal: NBR / PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1 Piston diameter [mm] 50 Stroke [mm] 400 Version Standard A (piston rod thread) M 16 B (fastening thread) M 45x1,5 G (compressed air port) G 1/4" B1 [mm] 9 B2 [mm] 53 D1 [mm] 58 D2 [mm] 20 D4 [mm] 57 D5 [mm] 45 D6 [mm] 52,4 D7 M 12x1,5 F [mm] 32 K [mm] 50 L1 [mm] 188 L2 [mm] 62 L3 [mm] 96 L4 [mm] 38 L5 [mm] 18 CH [mm] 16 Weight 2,9 kg / pcs GTIN 4050571275808 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
