Description

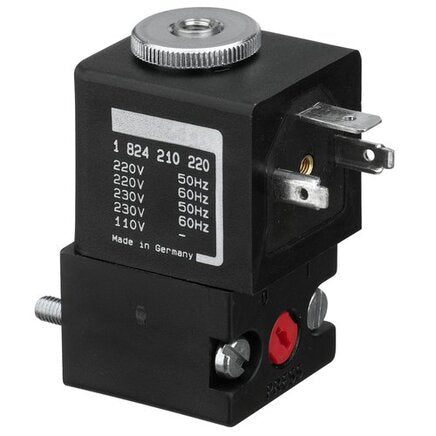

Genuine Aventics pneumatic valve.
| Manufacturer | Aventics |
| MPN | 820019528 |
| Product Type | Pneumatic Valve |
| Series | Do30 Series |
| Valve Configuration | 3/2 |
| Voltage | 110AC |
| Electrical interface | ISO 4400, Form A |
| Manual override | non-latching |
| Output connection | CNOMO |
| Nominal flow Qn | l/min |
| Ambient temperature max. | 50 °C |
| Ambient temperature min. | -10 °C |
| Ventilation connection | M5 |
| Inlet connection | CNOMO |
| Operating pressure max. | 10 bar |
| Operating pressure min. | 0 bar |
| Operating voltage V AC 60Hz | 110 V |
| SAP short text | DO30-3/2NC-CNOM-110AC |
For technical assistance, equivalents, or bulk enquiries, contact us.
