Description

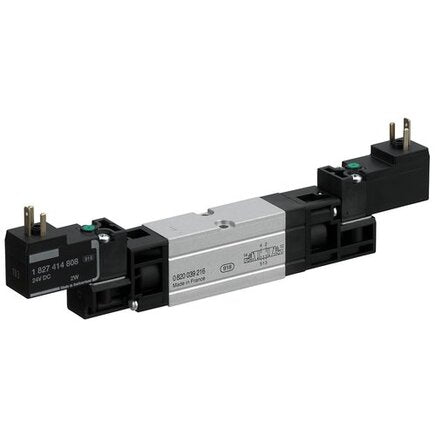

Genuine Aventics pneumatic valve.
| Manufacturer | Aventics |
| MPN | 820039219 |
| Product Type | Pneumatic Valve |
| Series | Cd02 Al Series |
| Valve Configuration | 5/3 |
| Voltage | 110AC |
| Electrical interface | ISO 15217, Form C |
| Manual override | non-latching |
| Output connection | Base plate VDMA 02 |
| Nominal flow Qn | 400 l/min |
| Ambient temperature max. | 50 °C |
| Ambient temperature min. | 0 °C |
| Ventilation connection | Base plate VDMA 02 |
| Connection input | Base plate VDMA 02 |
| Operating pressure max. | 10 bar |
| Operating pressure min. | 2.2 bar |
| Operating voltage V AC 50 Hz | 110 V |
| Operating voltage V AC 60Hz | 110 V |
| SAP short text | CD02-5/3CC-110AC |
For technical assistance, equivalents, or bulk enquiries, contact us.
