Description

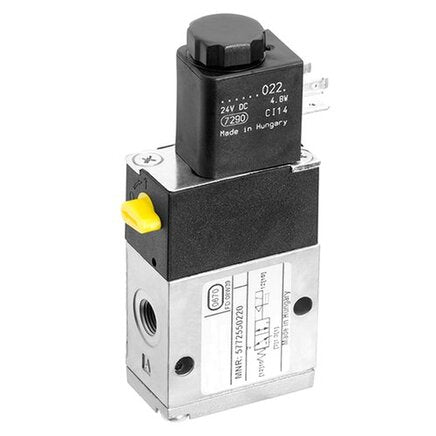

Genuine Aventics pneumatic valve.
| Manufacturer | Aventics |
| MPN | 5772565280 |
| Product Type | Pneumatic Valve |
| Series | Cd04 Series |
| Valve Configuration | 3/2 |
| Voltage | 220AC |
| Connection output | G 1/8" |
| Nominal flow Qn | 900 l/min |
| Ambient temperature max. | 50 °C |
| Ambient temperature min. | -15 °C |
| Exhaust connection | G 1/8" |
| Inlet connection | G 1/8" |
| Max. operating pressure | 10 bar |
| Operating pressure min. | -0.95 bar |
| Electrical interface | EN 175301-?803, Form B |
| Manual override | latching |
| Operating voltage V AC 50 Hz | 230 V |
| Operating voltage V AC 60Hz | 230 V |
| SAP short text | CD04-?3/2NC-?SR-220AC-E-G018-G018-EN175301 |
For technical assistance, equivalents, or bulk enquiries, contact us.
