Description

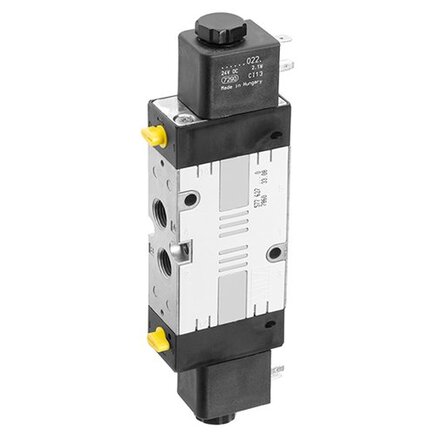

Genuine Aventics pneumatic valve.
| Manufacturer | Aventics |
| MPN | 5776280220 |
| Product Type | Pneumatic Valve |
| Series | Cd07 Series |
| Valve Configuration | 5/2 |
| Voltage | 24DC |
| Connection output | G 1/4 |
| Nominal flow Qn | 1200 l/min |
| Ambient temperature max. | 50 °C |
| Ambient temperature min. | -25 °C |
| Exhaust connection | G 1/4 |
| Inlet connection | G 1/4 |
| Operating pressure max. | 10 bar |
| Operating pressure min. | -0.95 bar |
| Operating voltage V DC | 24 V |
| Electrical interface | EN 175301-?803, form A |
| Manual override | latching |
| SAP short text | CD07-5/2XX-DO-024DC-E-G014 |
For technical assistance, equivalents, or bulk enquiries, contact us.
