Description

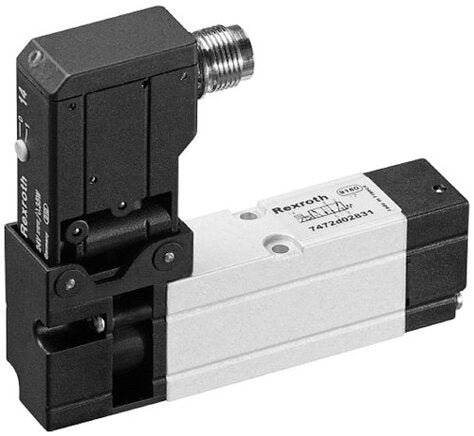

Genuine Aventics pneumatic valve.
| Manufacturer | Aventics |
| MPN | 7472D02836 |
| Product Type | Pneumatic Valve |
| Series | Cd02 Al Series |
| Valve Configuration | 5/2 |
| Voltage | 24DC |
| Electrical interface | M12 |
| Manual override | latching |
| Output connection | Base plate VDMA 02 |
| Nominal flow rate Qn | 450 l/min |
| Ambient temperature max. | 50 °C |
| Ambient temperature min. | 0 °C |
| Ventilation connection | Base plate VDMA 02 |
| Connection Input | Base plate VDMA 02 |
| Operating pressure max. | 10 bar |
| Operating pressure min. | -0.8 bar |
| Operating voltage V DC | 24 V |
| SAP short text | CD02-?5/2XX-?DO-024DC-M12 |
