Description

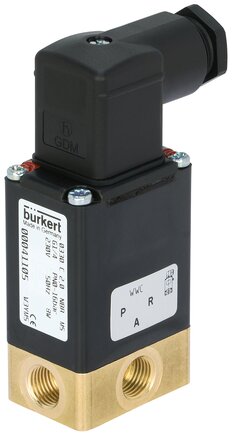

Burkert 0330 3/2-Way Solenoid Valve – 24V AC – 138316 is a genuine Bürkert component, ideal for maintenance, replacement and new installations. Designed for reliable performance in demanding industrial and process environments.
If you’re matching an existing unit, the order number and configuration code are the safest way to confirm compatibility. Need help cross-referencing? Roladex can assist.
Key features
- Genuine Bürkert component for industrial fluid control
- Suitable for automation, process and OEM maintenance
- Designed for dependable operation and long service life
- Specification details listed below
Properties
| CE mark | Yes |
| Seat seal material category | Elastomers |
| Seat seal material | FKM (fluoro rubber) |
| Nominal pressure max (liquid) | 12 bar |
| Sealing to the outside Material | FKM (fluorinated rubber) |
| Temperature ambient max | 55 °C |
| Temperature medium min | 0 °C |
| Temperature medium max | 90 °C |
| Temperature surface max | 150 °C |
| Nominal pressure min | 0 bar |
| Main valve nominal width 1 (inch) | 5/64 inch |
| Line connection 2 type | Female thread |
| Nominal pressure max (liquid) | 12 bar |
| Line connection 2 thread designation | 1/4 |
| Voltage min / nominal voltage | 24 V |
| Voltage max / nominal voltage | 24 V |
| AC voltage | Yes |
| Temperature ambient max | 55 °C |
| Temperature medium min | 0 °C |
| Temperature medium max | 90 °C |
| Temperature surface max | 150 °C |
| How it works | T - universally applicable - connection assignment 1 (P/NC), 2 (A/in/out) and 3 (R/NO) depending on use |
| Main valve nominal width 1 (P) (mm) | 2 mm |
| Main valve nominal width 1 (inch) | 5/64 inch |
| Main valve nominal size 3 (R) (mm) | 2 mm |
| Line connection 2 type | Internal thread |
| Line connection 2 thread type | G |
| Line connection 2 thread designation | 1/4 |
| Voltage min / nominal voltage | 24 V |
| Voltage max / nominal voltage | 24 V |
| AC voltage | Yes |
| DC voltage | No |
| Voltage Frequency | 50 Hz |
| Main valve material in contact with the medium | Brass |
| Valve seat material | Brass |
| How it works | T - universally applicable - Pin assignment 1 (P/NC), 2 (A/in/out) and 3 (R/NO) according to use |
| Rated power | 8 W |
| Weight | 470 g / pcs |
| Customs duty number | 84818079 |
| Manufacturer | Burkert |
