Description

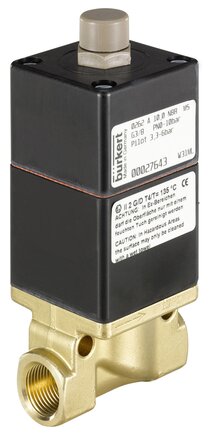

Burkert 2031 2/2-Way Valve – 2031-A-2-08.0-AD-VG-SA40-D-C is a genuine Bürkert component, ideal for maintenance, replacement and new installations. Designed for reliable performance in demanding industrial and process environments.
If you’re matching an existing unit, the order number and configuration code are the safest way to confirm compatibility. Need help cross-referencing? Roladex can assist.
Key features
- Genuine Bürkert component for industrial fluid control
- Suitable for automation, process and OEM maintenance
- Designed for dependable operation and long service life
- Specification details listed below
Properties
| CE mark | Yes |
| Membrane material | EPDM high temperature |
| Piston seal material | FKM (fluoro rubber) |
| Nominal pressure min | 0 bar |
| Nominal pressure max | 10 bar |
| Control pressure min | 5 bar |
| Control pressure max | 7 bar |
| Nominal pressure (DIN EN 1333) | PN 16 |
| Temperature ambient min | 5 °C |
| Temperature ambient max | 140 °C |
| Temperature medium min | -10 °C |
| Temperature medium max | 143 °C |
| Housing nominal width | 8 mm |
| Line connection 2 type | Welding end |
| Line connection 2 size DN | DN 8 |
| Valve body material category | Metals |
| Valve body material | Stainless steel |
| How it works | A - closed in rest position (NC) |
| Weight | 370 g / pcs |
| Customs duty number | 84818087 |
| Manufacturer | Burkert |
Supply & support
- UK supply from Roladex Industrial
- Trade pricing available
- Fast UK-wide delivery options
- Technical support for selection and equivalents
