Description

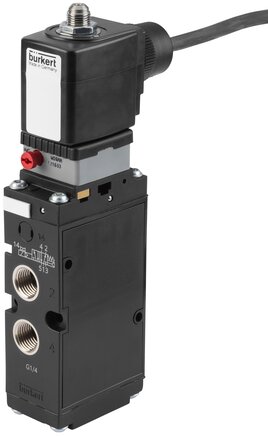

Burkert 6519 5/2-Way Valve – 24V AC – 6519-H08,0-GM82-GM82-B5-024/UC is a genuine Bürkert component, ideal for maintenance, replacement and new installations. Designed for reliable performance in demanding industrial and process environments.
If you’re matching an existing unit, the order number and configuration code are the safest way to confirm compatibility. Need help cross-referencing? Roladex can assist.
Key features
- Genuine Bürkert component for industrial fluid control
- Suitable for automation, process and OEM maintenance
- Designed for dependable operation and long service life
- Specification details listed below
Properties
| CE mark | Yes |
| Main valve seal material | PUR (polyurethane) |
| Pilot control seal material | FKM (fluoro rubber) |
| Nominal pressure min | 2 bar |
| Nominal pressure max | 10 bar |
| Temperature ambient min | -25 °C |
| Temperature ambient max | 50 °C |
| Temperature medium min | -10 °C |
| Temperature medium max | 55 °C |
| Main valve nominal diameter 1 (P) (mm) | 8 mm |
| Voltage min / nominal voltage | 24 V |
| Voltage max / nominal voltage | 24 V |
| AC voltage | Yes |
| DC voltage | Yes |
| Coil size | 32 mm |
| Pilot control material in contact with the medium | PA (polyamide) |
| Precontrol material in contact with the environment | PA (polyamide) |
| Main valve material in contact with the medium | PA (polyamide) |
| Main valve material in contact with the environment | PA (polyamide) |
| How it works | H/Z - open in rest position - pressure port 1 to working port 2, working port 4 to output 5 open, exit 3 closed |
| Weight | 750 g / pcs |
| Customs duty number | 84812090 |
| Manufacturer | Burkert |
Supply & support
- UK supply from Roladex Industrial
- Trade pricing available
- Fast UK-wide delivery options
- Technical support for selection and equivalents
