Description

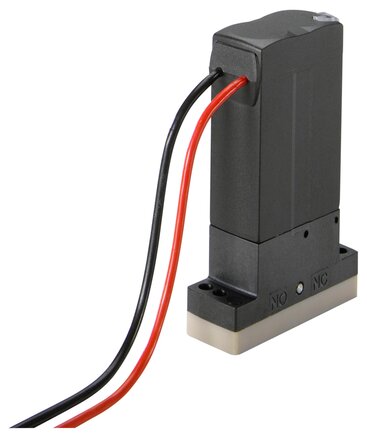

Burkert 6624 2/2-Way Solenoid Valve – 12V DC – 6624-A00,8CCPK-FB44-012/DC-CR- is a genuine Bürkert component, ideal for maintenance, replacement and new installations. Designed for reliable performance in demanding industrial and process environments.
If you’re matching an existing unit, the order number and configuration code are the safest way to confirm compatibility. Need help cross-referencing? Roladex can assist.
Key features
- Genuine Bürkert component for industrial fluid control
- Suitable for automation, process and OEM maintenance
- Designed for dependable operation and long service life
- Specification details listed below
Properties
| CE mark | Yes |
| Seat seal material category | Elastomers |
| Seat seal material | FFKM (perfluoro rubber) |
| Sealing to the outside material | FFKM (perfluoro rubber) |
| Differential pressure max | 5 bar |
| Nominal pressure min | -1 bar |
| Nominal pressure max | 5 bar |
| Temperature ambient min | 15 °C |
| Temperature ambient max | 55 °C |
| Temperature medium min | 15 °C |
| Temperature medium max | 50 °C |
| Valve nominal diameter | 0.8 mm |
| Line connection 2 type | Flange |
| Voltage min / nominal voltage | 12 V |
| Voltage max / Nominal voltage | 12 V |
| AC voltage | No |
| DC voltage | No |
| How it works | A - closed in rest position - pressure port 1 (P/NC) |
| Rated power | 4 W |
| Weight | 30 g / pcs |
| Customs duty number | 84818079 |
| Manufacturer | Burkert |
