Description

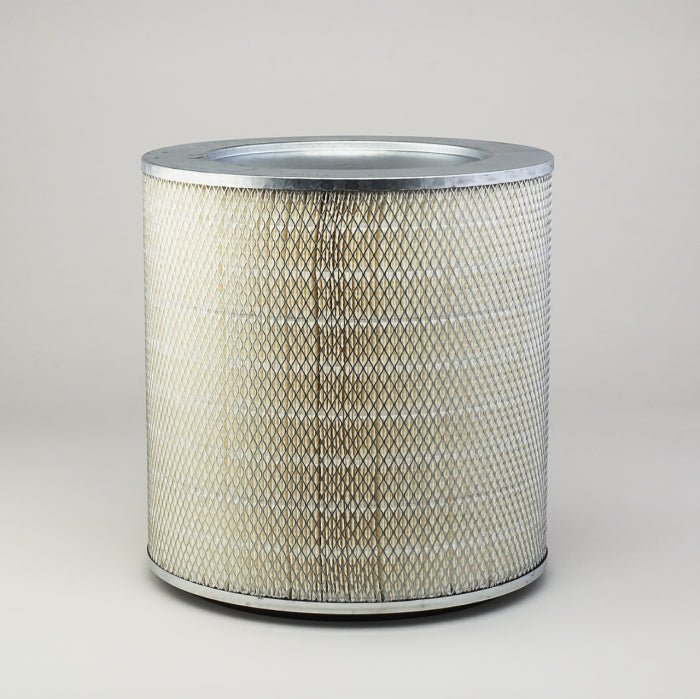

Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal.
• High-efficiency cellulose media performs across a wide range of heavy-duty engine applications.
• Corrosion resistant, coated steel liners support media during operation and help maximize airflow.
• Pleatloc™ feature ensures uniform pleat spacing and prevents media from bunching to promote longer service life.
• High-efficiency cellulose media performs across a wide range of heavy-duty engine applications.
• Corrosion resistant, coated steel liners support media during operation and help maximize airflow.
• Pleatloc™ feature ensures uniform pleat spacing and prevents media from bunching to promote longer service life.
Specifications:
| Overall Length | 368.3 mm (14.50 inch) |
| Outer Diameter | 351.6 mm (13.84 inch) |
| Inner Diameter | 240.7 mm (9.48 inch) |
| Length | 355.6 mm (14.00 inch) |
| Gasket ID | 285 mm (11.22 inch) |
| Gasket OD | 295 mm (11.61 inch) |
| Bolt Hole Diameter | 13.46 mm (0.53 inch) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
