Description

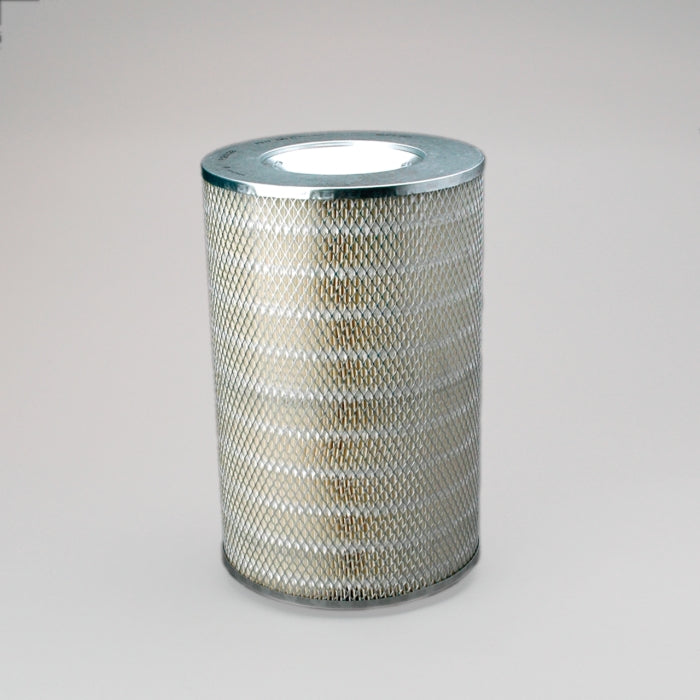

Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal.
• High-efficiency cellulose media performs across a wide range of heavy-duty engine applications.
• Corrosion resistant, coated steel liners support media during operation and help maximize airflow.
• Pleatloc™ feature ensures uniform pleat spacing and prevents media from bunching to promote longer service life.
• High-efficiency cellulose media performs across a wide range of heavy-duty engine applications.
• Corrosion resistant, coated steel liners support media during operation and help maximize airflow.
• Pleatloc™ feature ensures uniform pleat spacing and prevents media from bunching to promote longer service life.
Specifications:
| Overall Length | 419.1 mm (16.50 inch) |
| Outer Diameter | 264.4 mm (10.41 inch) |
| Inner Diameter | 153.2 mm (6.03 inch) |
| Length | 406.4 mm (16.00 inch) |
| Bolt Hole Diameter | 31.75 mm (1.25 inch) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Family | EBB |
| Primary Application | CASE/CASE IH 476741C1 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
