Description

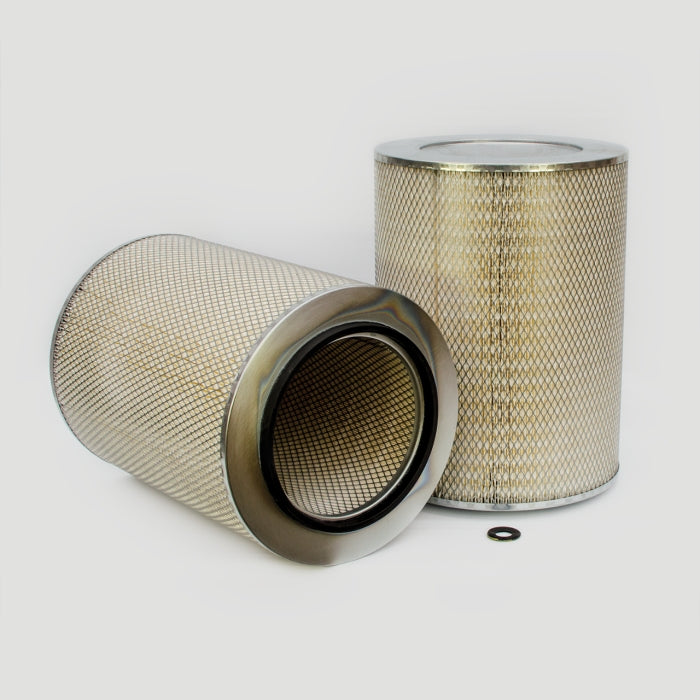

Strong, reliable gasket is compressed against the air cleaner housing to create a tight seal.
• High-efficiency cellulose media performs across a wide range of heavy-duty engine applications.
• More media pleats deliver higher dust-holding capacity and longer filter life.
• Corrosion resistant, coated steel liners support media during operation and help maximize airflow.
• Pleatloc™ feature ensures uniform pleat spacing and prevents media from bunching to promote longer service life.
• High-efficiency cellulose media performs across a wide range of heavy-duty engine applications.
• More media pleats deliver higher dust-holding capacity and longer filter life.
• Corrosion resistant, coated steel liners support media during operation and help maximize airflow.
• Pleatloc™ feature ensures uniform pleat spacing and prevents media from bunching to promote longer service life.
Specifications:
| Overall Length | 419.1 mm (16.50 inch) |
| Outer Diameter | 307.2 mm (12.09 inch) |
| Inner Diameter | 196.2 mm (7.72 inch) |
| Length | 406.4 mm (16.00 inch) |
| Bolt Hole Diameter | 22.73 mm (0.89 inch) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Family | STG |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
